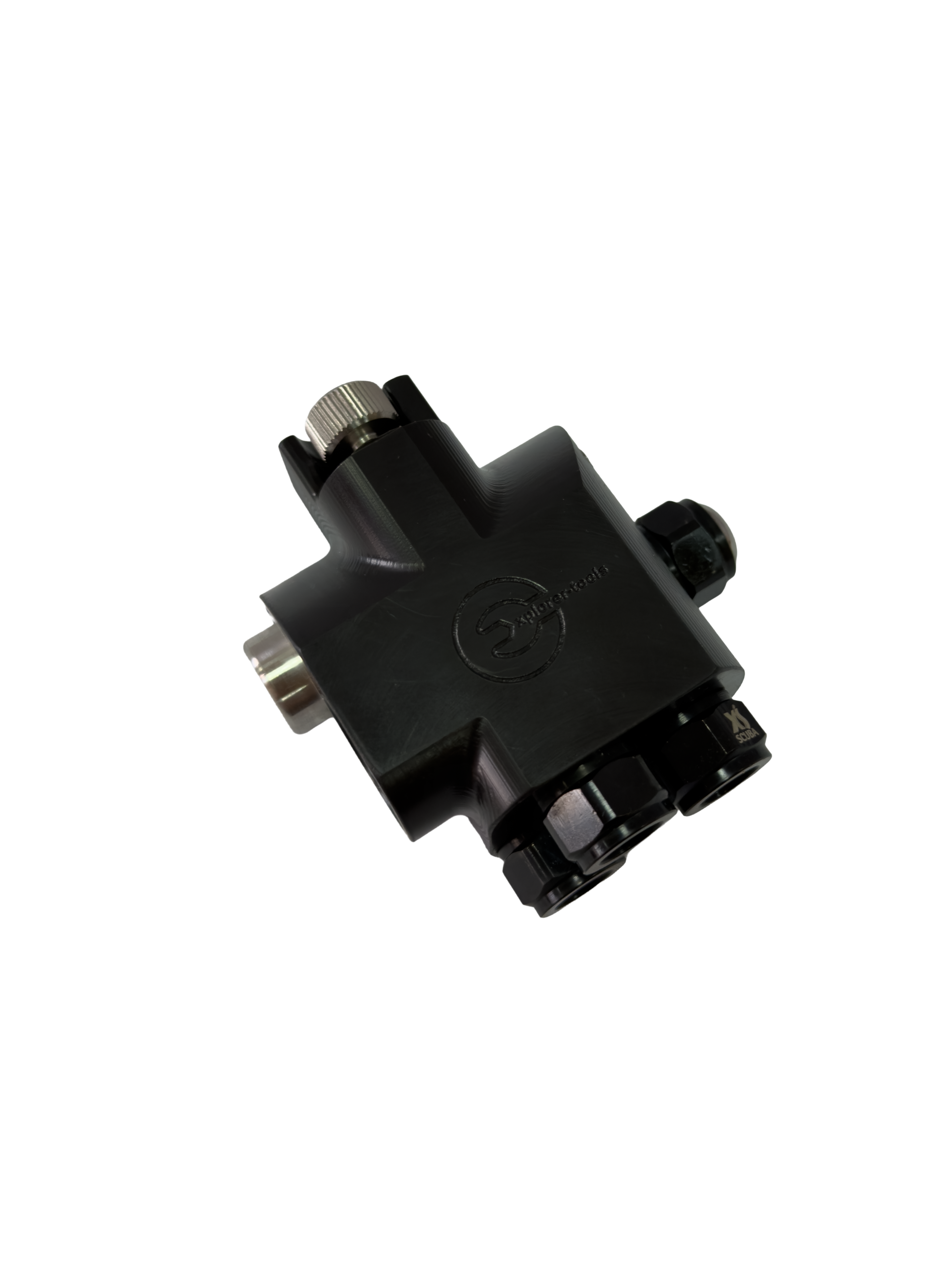

Dual Manual Addition Valve with adjustable needle valve for independent oxygen and diluent addition.
The S7 Dual MAV provides manual control over the addition of oxygen and diluent to the breathing loop.
The oxygen side is used to compensate for metabolic oxygen consumption and maintain the required oxygen level in the loop. The diluent side can be used to manage loop volume, reduce PO₂ and perform loop flushing when required.
This version features an adjustable needle valve, allowing the oxygen flow to be fine-tuned by the diver.
SpecificationsType: Dual MAVWeight: 9.4 gDimensions: 17х17х13,5 mmGas connections: O₂ + DiluentOxygen control: Adjustable needle valvePorts: 9/16" femaleAdapters: 9/16" male to 3/8" femaleApplication: S7 CCR
