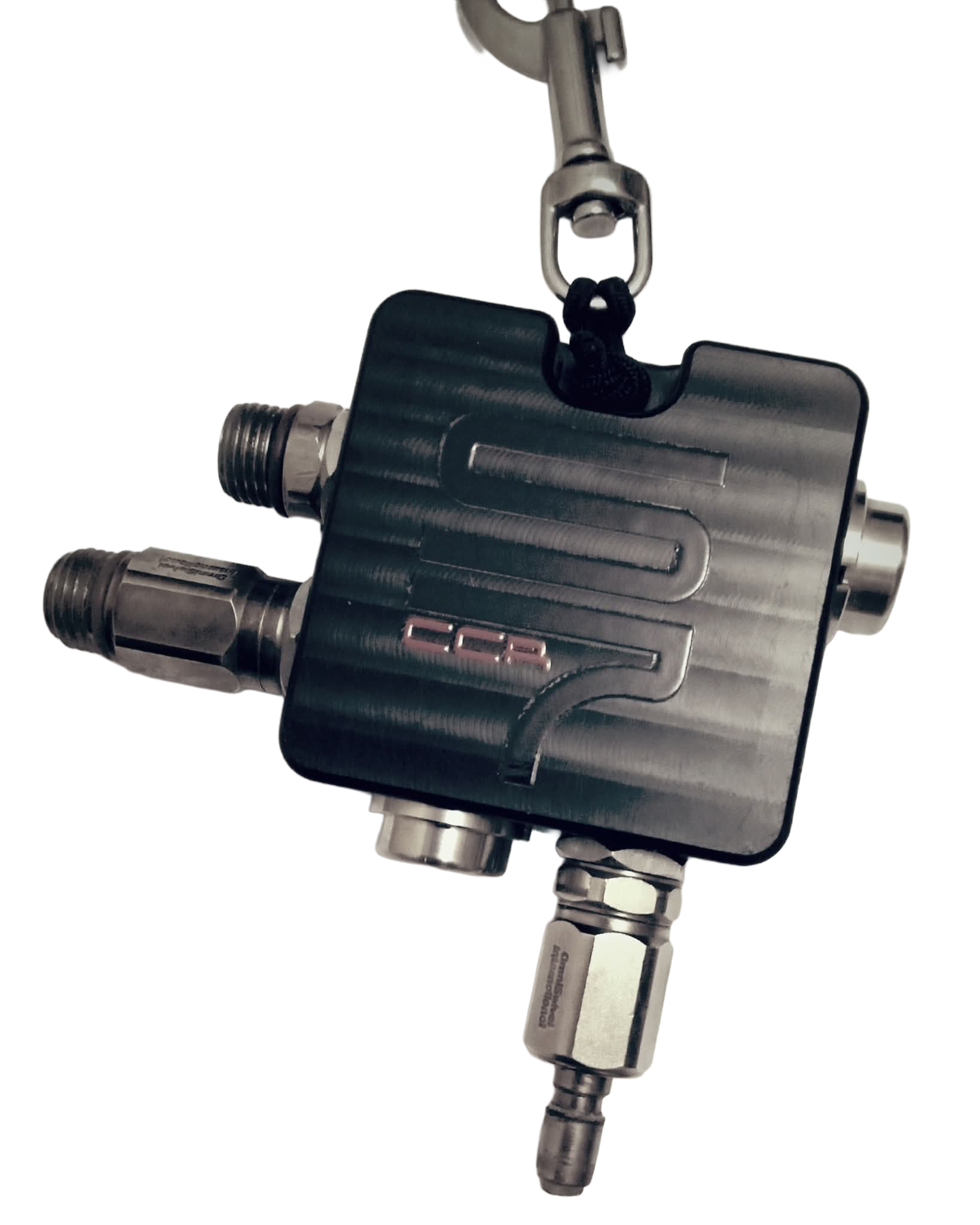

Dual MAV with fixed oxygen orifice for controlled oxygen addition to the S7 breathing loop.
The S7 MAV with Orifice uses a fixed-flow oxygen orifice instead of an adjustable needle valve.
The orifice provides an oxygen flow of approximately 1 L/min, compensating for metabolic oxygen consumption during the dive. The diluent side can be used to manage loop volume and reduce PO₂ when required.
The configuration includes a plug for connection to the first stage.
SpecificationsType: Dual MAVWeight: 255 gDimensions: 82 × 80 × 26 mmOxygen control: Fixed orificeOxygen flow: approx. 1 L/minDiluent control: ManualFirst-stage plug: IncludedApplication: S7 CCR
The S7 MAV with Orifice uses a fixed-flow oxygen orifice instead of an adjustable needle valve.
The orifice provides an oxygen flow of approximately 1 L/min, compensating for metabolic oxygen consumption during the dive. The diluent side can be used to manage loop volume and reduce PO₂ when required.
The configuration includes a plug for connection to the first stage.
SpecificationsType: Dual MAVWeight: 255 gDimensions: 82 × 80 × 26 mmOxygen control: Fixed orificeOxygen flow: approx. 1 L/minDiluent control: ManualFirst-stage plug: IncludedApplication: S7 CCR
